Rodent Repellent System

rodent-repellent-system

Rodent Repellent System

What is ULTRASOUND ?
  • Human audible range up to 10Khz.
  • Ultrasound is above 20Khz.
  • Rats communicate in ultrasound range.
  • Humans do not get affected by ultrasound.
  • Ultrasound does not kill rats it irritates them due to which they run away.
Applications :
  • Used in data centers, server rooms, hub rooms, ups, etc. where presence of rats damage the cables.
  • Rodent repellent system can also be used warehouses, storage units etc, where the presence of rats can damage the food and other things.
Features :
  • Up to 12 Transducers can be connected to main console.
  • ERTL Tested.
  • Individual wiring for transducers.
  • Self testing facility of transducers.
  • Compact and elegant looks.
  • User Friendly controls.
  • The satellites do not need a power connection and they can be tested on an audible range with the help of a self-testing facility.
Technical Specifications :

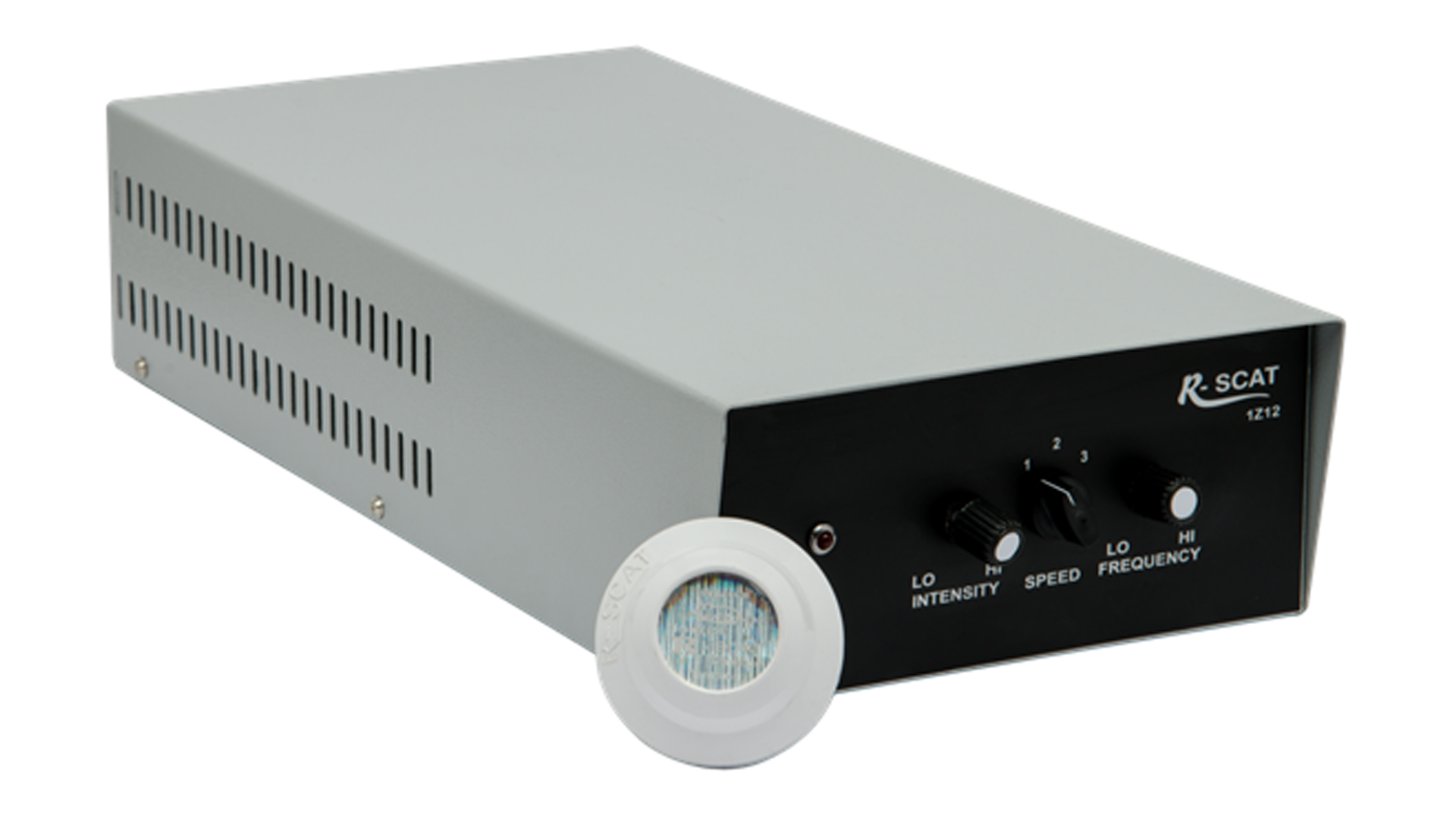

Main Console The Main Console can connect up to 12 Transducer(Satellites).
Area covered by each transducer (Approximately)
a) Room Void :
b) Ceiling Void :
c) Below false floor : 		300 Sq. ft.
150 Sq. ft.
150 Sq. ft.
Operating Freq. Above 20 KHZ (Variable).
Sound output 50 db to 100 db at 1 metre.
Power output 850mW per transducer.
Power Consump. 5.5Watts per transducer
Power Supply 230V AC / 50Hz (15Amp Socket)
Dimensions 200(W) x 90(H) x 415(D)mm
Weight 4.0 Kgs Approx
Mounting Wall / Table Mounting
Testing :
  • In order to check if the transducers are working we have a provision of test mode.
  • The satellites connected to the panel start creating a human audible sound.
  • Thus we can say that the satellites are in working condition and are emitting ultrasound.
