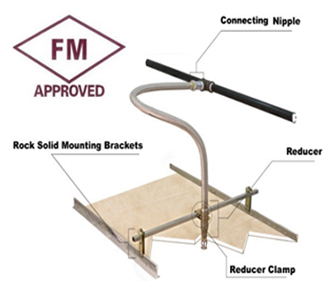

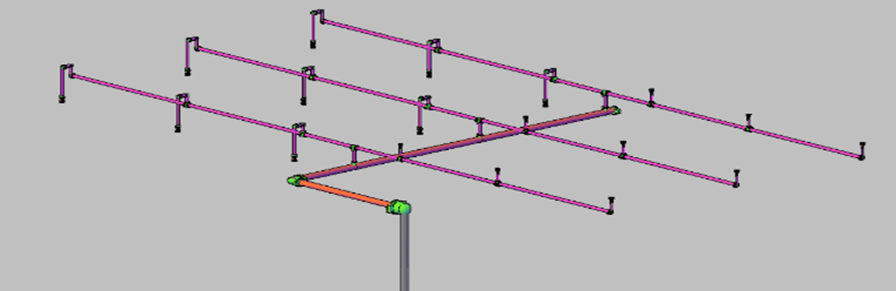

General Description TYCO Model FH-1 Flexible Hose can be used in wet sprinkler systems between the branch line and sprinkler when installed in accordance with NFPA 13, 13D, and 13R. Flexible Hose provides a unique sprinkler drop assembly comprised of the following components :

• Stainless steel flexible hose with two slip nuts
• Branch line inlet nipple
• Straight sprinkler reducer
• Reducer bracket, bar fixing clamps, and support bar

Using Model FH-1 Flexible Hose saves time and cost because the system can be installed in false ceilings without cutting and threading pipes associated with installing a drop, arm-over, and elbows. Model FH-1 Flexible Hose makes it possible to test and charge the system with water before installing the ceiling grid. After the ceiling grid is in position, the Model FH-1 Flexible Hose can be reshaped to suit the final sprinkler location without draining the system.

Technical Data Approvals :

UL Listed (Refer to Table A) FM Approved (Refer to Table B) Nominal Assembly Lengths 700 mm, 1000 mm, 1200 mm, 1500 mm, 1800 mm Styles Braided and Unbraided Inlet Connection ISO 7-R 1 Outlet Connections 1/2 inch NPT 3/4 inch NPT Maximum Service Pressure 13, 8 bar (Refer to Table A) 12, 1 bar (Refer to Tables A and B) Maximum Ambient Temperature 107°C Discharge Coefficient Refer to Tables A and B Minimum Installation Bend Radius Refer to Tables A and B Bending Angles (Flow Direction) Up to 180 degrees

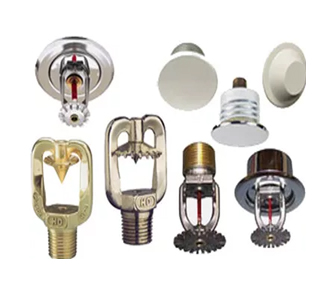

Series TY-B, 5.6 K-factor Upright, Pendent, and Recessed Pendent Sprinklers Standard Response, Standard Coverage

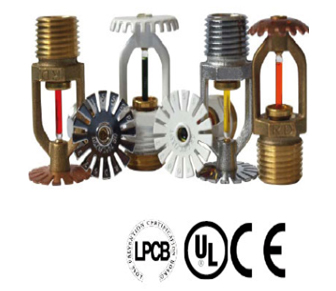

The TYCO Series TY-B, 5.6 K-factor, Upright (TY315) and Pendent (TY325) Sprinklers described in this data sheet are standard response, standard coverage, decorative 5 mm glass bulb type spray sprinklers designed for use in light, ordinary, or extra hazard, commercial occupancies such as banks, hotels, shopping malls, factories, refineries, and chemical plants. The recessed version of the Series TY-B Pendent Sprinkler, where applicable, is intended for use in areas with a finished ceiling. This recessed pendent sprinkler uses one of the following:

• A two-piece Style 15 Recessed Escutcheon with recessed adjustment up to 5/8 inch (15,9 mm) from the flush pendent position.
• A two-piece Style 20 Recessed Escutcheon with recessed adjustment up to 1/2 inch (12,7 mm) from the flush pendent position. The adjustment provided by the Recessed Escutcheon reduces the accuracy to which the fixed pipe drops to the sprinklers must be cut. Intermediate level versions of Series TY-B Sprinklers are described in Technical Data Sheet TFP352. Sprinkler guards and shields are described in Technical Data Sheet TFP780.

Technical Data :

Approvals UL and C-UL Listed FM, LPCB, and VdS Approved CE Certified Sprinklers with Polyester Finish are UL and C-UL Listed as CorrosionResistant Sprinklers. Maximum Working Pressure 175 psi (12.1 bar) 250 psi (17.2 bar)* * The maximum working pressure of 250 psi (17.2 bar) only applies to the listing by Underwriters Laboratories, Inc. (UL). Discharge Coefficient K = 5.6 GPM/psi1/2 (80,6 LPM/bar1/2)
