Water Leak Detection System

Water Leak Detection System

How the System Works ?

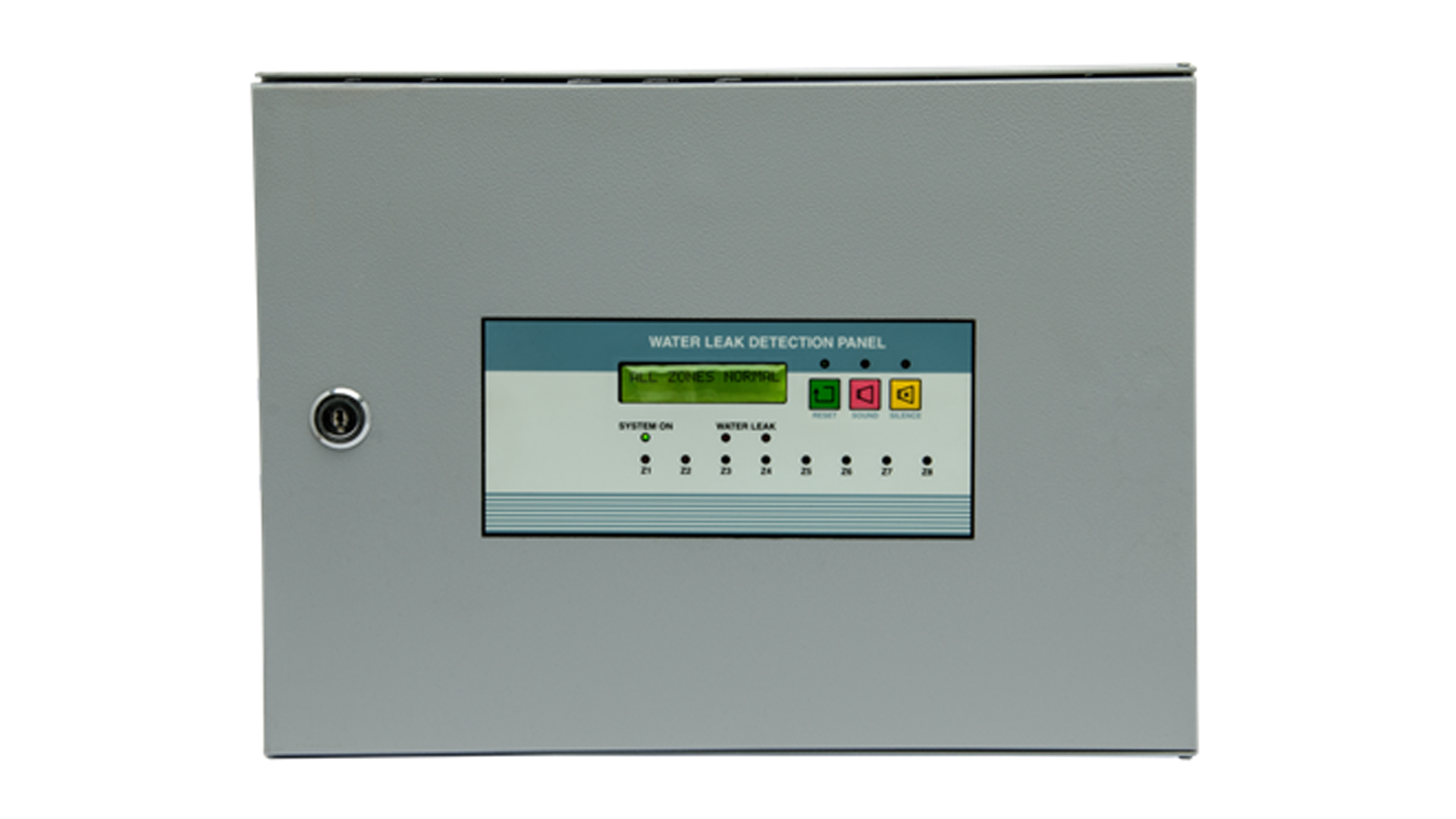

• The water leak detection system consist of a water leak detection panel JAY Je3523, water leak detection cables WD-CS and a external sounder.
• The water leak cables are laid all over the area.
• When the cable senses a leak, leak indication is displayed on the panel along with the information of the zone where the event has occurred and the hooter and internal buzzer is activated.
• Along with it a relay is activated in order to provide a potential free o/p to the BMS.

Applications :

• The water leak detection system is mainly used places where data cables are conduit along with the HVAC pipes.
• Whenever there is a leak in the HVAC pipes the WLD cables notifies it to the BMS and thus we can save the data cables from being damaged.
• The water leak detection system is mainly used in data centers, UPS rooms, Hub rooms, server rooms and control rooms.

Features :

• The panel is available for 1 to 8 zones.
• Can detect leak any where along the entire cable length.
• LCD display to notify the leak and zone number.
• Operates zone wise Potential free relay and one common relay in case of Alarm for BMS Integration.
• Built in audible sounder and common hooter output.
• Easy to install and operate.
• Self restoring.

Technical Specifications :

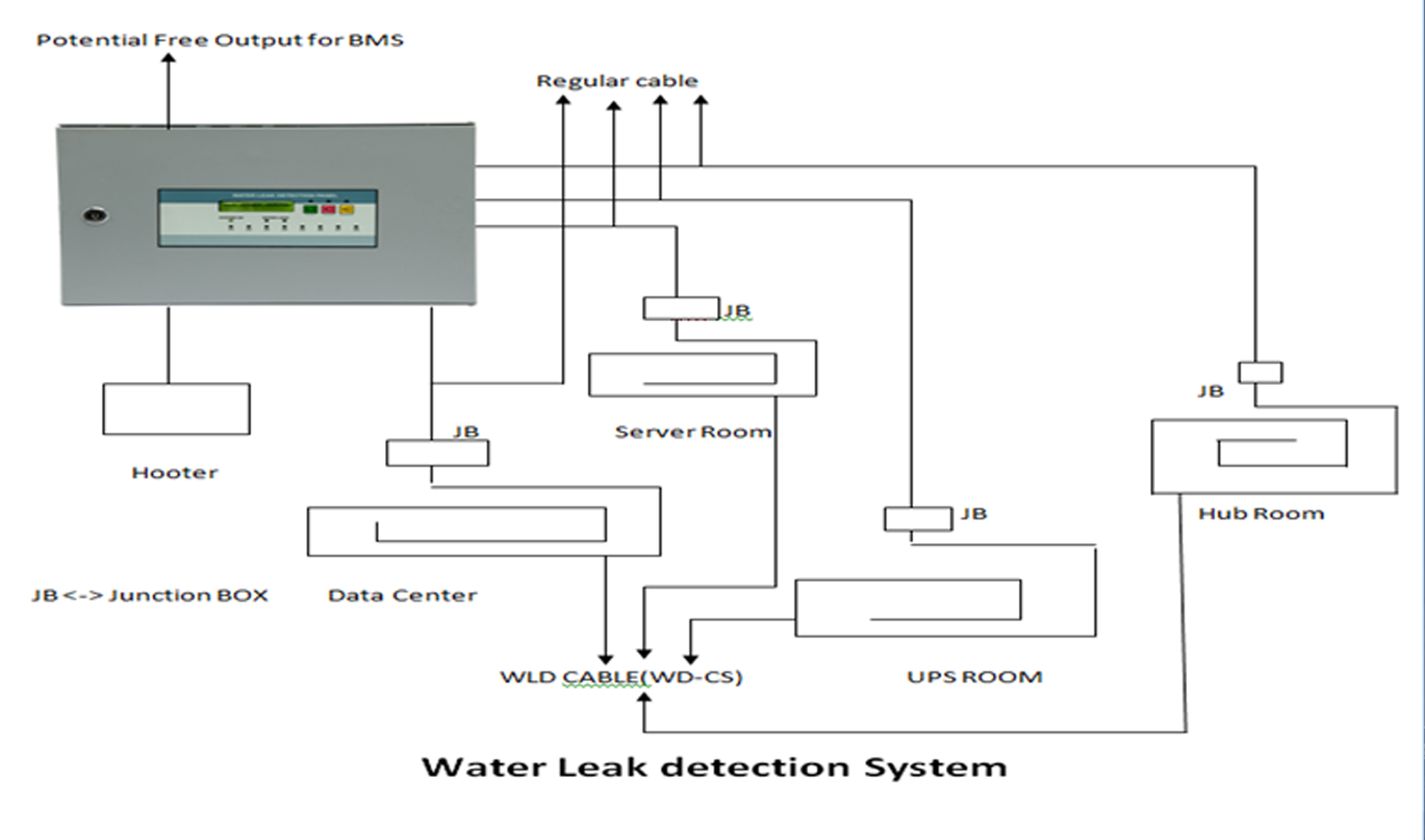

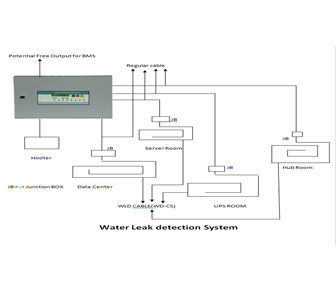

Wiring Diagram :
